STIROTACKER R PE Alu

STIROTACKER R PE Alu

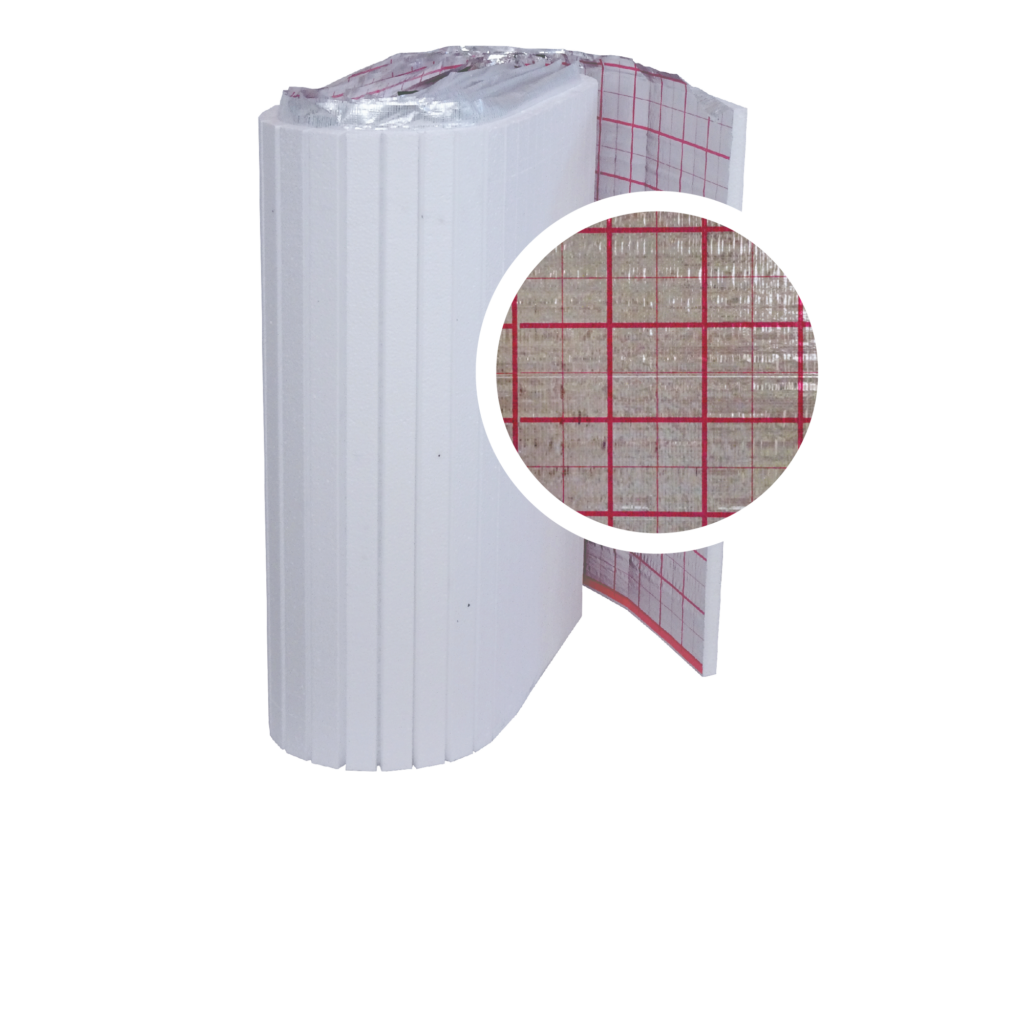

STIROTACKER R PE Alu are thermal insulation panels made of EPS (100, T650, T1000), laminated with metallized PE foil that has a printed grid for fastening pipes with pipe clips. The joints between the boards are made using pre-installed double-sided adhesive tape. The product is supplied in roll form, 10 meters in length. Installation of self-leveling screed is also possible.

Characteristics

EPS 100
  • thermal conductivity  λD: 0,036 W/m.K
  • thermal resistance RD: 0,80 m2 K/W
EPS T650
  • thermal conductivity  λD: 0,043 W/m.K
  • thermal resistance RD: 0,65 m2 K/W
EPS T1000
  • thermal conductivity  λD: 0,036 W/m.K
  • thermal resistance RD: 0,80 m2 K/W

Specification

thickness of EPS 10030 mm
thickness of EPS T65030 mm
thickness of EPS T1000 30 mm
panel size1000 x 100 cm
foilPE Alu

Packaging

roll: 10 m2
